White 1.04 Inch Mini OLED Display 128x32 24 Pin Soldering Type

    Buy cheap White 1.04 Inch Mini OLED Display 128x32 24 Pin Soldering Type from wholesalers

    Buy cheap White 1.04 Inch Mini OLED Display 128x32 24 Pin Soldering Type from wholesalers
    • Buy cheap White 1.04 Inch Mini OLED Display 128x32 24 Pin Soldering Type from wholesalers
    • Buy cheap White 1.04 Inch Mini OLED Display 128x32 24 Pin Soldering Type from wholesalers

    White 1.04 Inch Mini OLED Display 128x32 24 Pin Soldering Type

    Ask Lasest Price
    Brand Name : Betterliv/OEM
    Model Number : HCQ2832WW24S01
    Payment Terms : T/T, Western Union, Credit Card
    Price :
    • Product Details
    • Company Profile

    White 1.04 Inch Mini OLED Display 128x32 24 Pin Soldering Type

    1.04 inch Small OLED Display Module 128*32 Dot White 24pin Soldering Type OLED Screen Parallel And SPI IIC Interface


    Product Description


    This is an OLED monochrome 128*32 dot matrix display module. The characteristics of this display module are high brightness, self-emission, high contrast ratio, slim/thin outline, wide viewing angle, wide temperature range, and low power consumption.


    1) Display Mode: Passive Matrix
    2) Display Color: Monochrome (White or Blue)
    3) Drive Duty: 1/64 Duty

    4) Wide viewing angel: >160 degree

    5) Brightness: 100 cd/m2

    6) Dark Room Contrast: >2000:1

    7) Sleep Mode Current for VCC: 1uA

    Display Type:oled display
    Display Mode:Passive Matrix
    Model Number:HCQ2832WW24S01
    Diagonal Screen size:1.04 inch
    Interface:Parallel, 4-wire SPI, I2C
    Drive Duty:1/32 Duty
    Number of Pixels:128x32

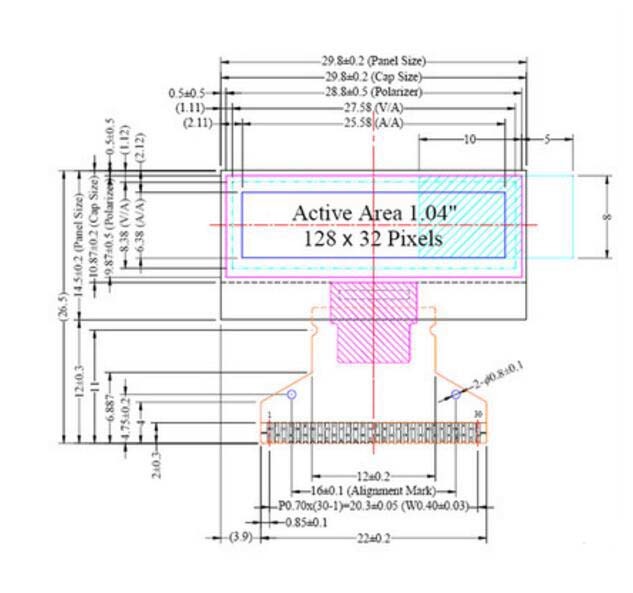

    Panel Size:30.40× 14.50 × 1.40 (mm)
    Driver IC:SSD1306
    Active Area:25.58× 6.38(mm)
    Pixel Size:0.18 x 0.18 (mm)
    Weight:1.54 (g)
    Operating Temperature:-40℃~85℃
