    30 Pin Small OLED Display 128x64 Dot 1.3 Inch White Blue Color

    Ask Lasest Price
    Brand Name : Betterliv/OEM
    Model Number : HCQ2864WW30S11
    Payment Terms : T/T, Western Union, Credit Card
    Price :
    • Product Details
    • Company Profile

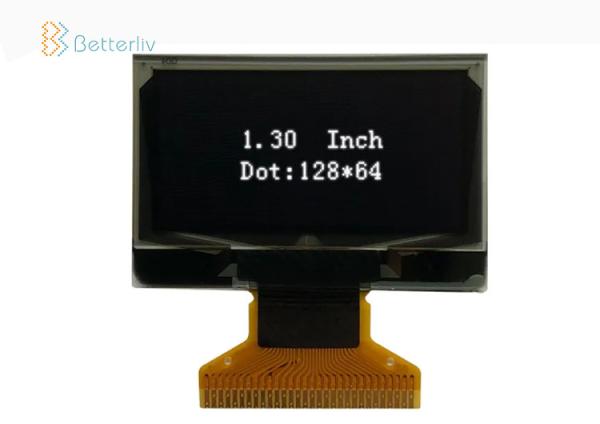

    30 Pin Small OLED Display 128x64 Dot 1.3 Inch White Blue Color

    Small OLED Display 128x64 Dot 1.3 Inch OLED 30 Pin Soldering Manufacturer Supplier


    Product Description


    128*64 LED display module for Arduino, supports many control chip.

    Ultra-low power consumption: full screen lit 0.08W
    Super high brightness and contrast are adjustable
    Interface type is IIC, 4-wire SPI, Parallel
    Pins: 30 pins or 25 pins
    Voltage: 2.6V ~ 3.5V DC
    Working Temperature: -40 ° ~ 85 °
    Drive Duty: 1/64 Duty
    High resolution: 128 * 64


    NOITEMSPECIFICATION
    1Diagonal A / A size1.3 inch
    2Panel Size34.5 (W) x 23.0 (H) x 1.45 (D) mm
    3Active Area29.42 (W) x 14.7 (H) mm
    4Panel Thickness1.4 ± 0.1
    5Dot Pitch0.23 (W) x 0.23 (H)
    6Dot Size0.21 (W) x 0.21 (H)
    7Dot Matrix128 (W) x 64 (H) dot

    Product Application

    30 Pin Small OLED Display 128x64 Dot 1.3 Inch White Blue Color
