OEM Customized 5W DIY Wireless Charger PCB/PCBA Board With Project Design

1. Wireless charging module:

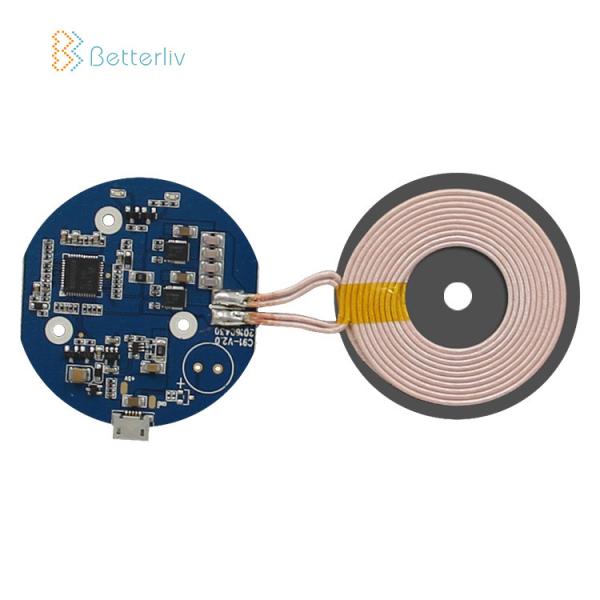

Transmitter module consists of the 50mm Tx coilwith an integrated electronics PCB. Already passed WPC1.2.4 QI certification .
Transmitter module offers a Coil-to-coil charging distance up to 8mm(+/- 1mm).
Transmitter module accepts QC2.0/3.0 Qualcomm quick-charge Adapters which provides 5V2A or 9V1.67 input on demand.

2. Transmitter Module:

Input voltage : 5V/9V DC+/-5%
Rated input current: 5V-2.0A/9V-1.5A
Required input Ripple voltage: <150mVp-p @ 1.5A 9V
Output power of Rx: 5W-7.5W-10W (10W / 9V-1.5A input)
Switching frequency: Working For QI 110-205KHZ / Iphone 126.5KHz +/-3KHz
Charging Efficiency: >70% (TI Medium Power Test RX)10W >75% (IDT P9221-R-EVK)10W
Ambient operating Temperature: -10 to 45°C
Over current protection: Yes
Thermal protection: Yes
Storage Temperature: -20 to +85°C
Effective Charging Area: typ. +/-5mm from coil centre (Dz=3mm)
Effective Charging Distance: typ.+3~ +8mm from Tx-coil to Rx-coil

We support customization

FAQ

Q1:Can I get the sample order?
A:Yes,welcome sample order to test and check quality.Mix samples are acceptable.

Q2:Can I brand the items with our own logo/Brand?
A:Welcome OEM and ODM.

Q3:After I get the products What if my products broken , what kind of service you support ?
A:We give you one year warranty.

Q4:What's the MOQ and lead time?
A:We don't have strict MOQ, samples or trial order is available.
Our sample lead time within 20days;our production lead time is 10-15days.
